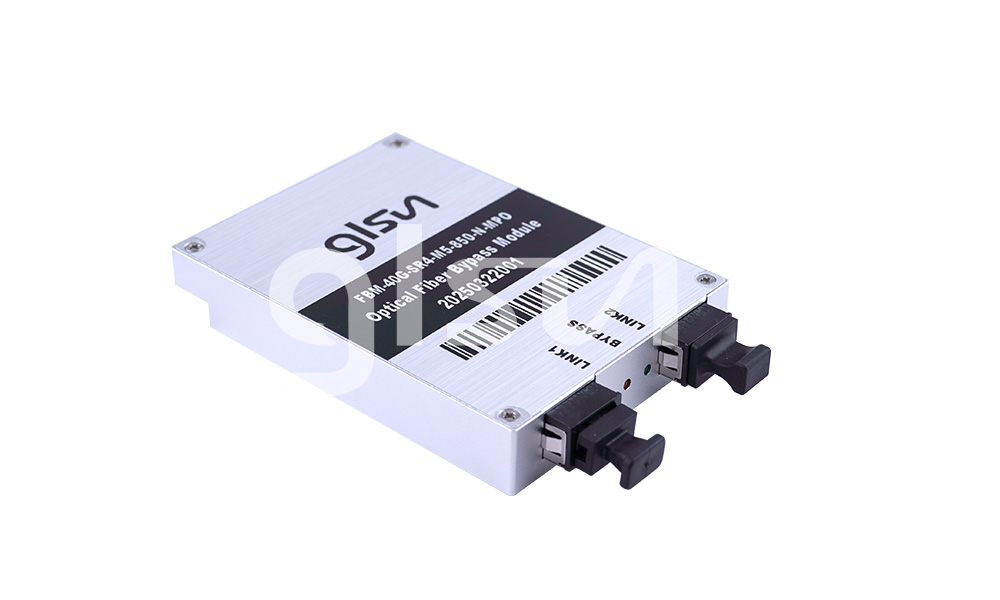

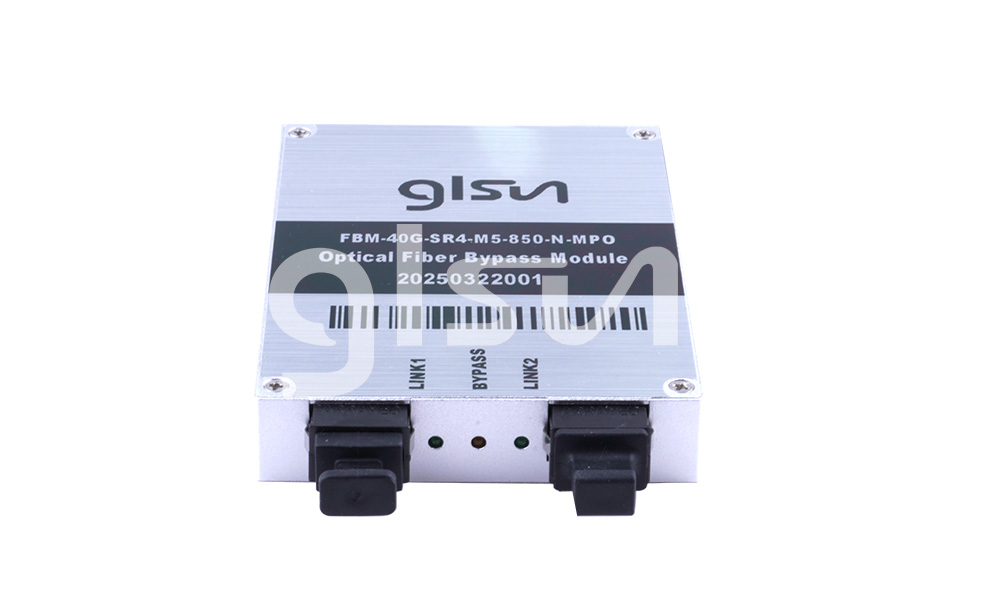

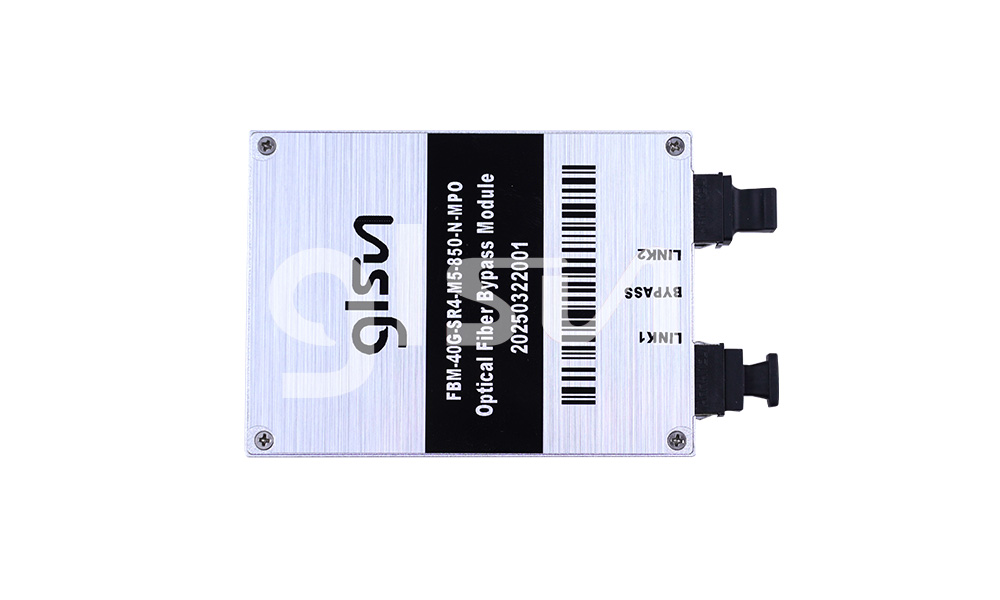

The 850nm 40G Dual QSFP+ SR4 quad port bypass module is designed as alternative 40Gbps dual QSPF+ SR4 transceiver. Its innovated design able the fiber bypass function become selectable within single PCI card. The 850nm 40G Dual QSFP+ SR4 quad port bypass module is design expressly for Intrusion Prevention System (IPS) provides complete visibility to network traffic, It also introduces a point of failure should the IPS lose power, cable fail or application freeze.

This interconnecting system include dual ways transceivers offers 4 channels and maximum bandwidth of 40Gbps. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps up to 100 m using OM3 fiber or 150 m using OM4 fiber. The optical interface uses a 12/8-fiber MTP® (MPO) connector.

Features
· Compliant with 40G Ethernet
· IEEE 802.3ba 40GBASE-SR4 standards
· Compliant with SFF-8436 QSFP+ specification Revision 3.5
· Unretimed XLPPI electrical interface
· Utilizes a standard 12/8 line optical fiber with MP-MTP optical connector
· Link up to 100m using OM3 MMF
· Laser Class 1 Product with comply with Requirements of IEC 60825-1 and IEC 60825-2

Applications
· 40GbE and 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR interconnects
· Client-side 40G Telecom connectionss
· 4G/8G/10Gfiber Channel
· STTA/SAS Storage
· In-Line Sercurity
· Web Acceleration Apliances
