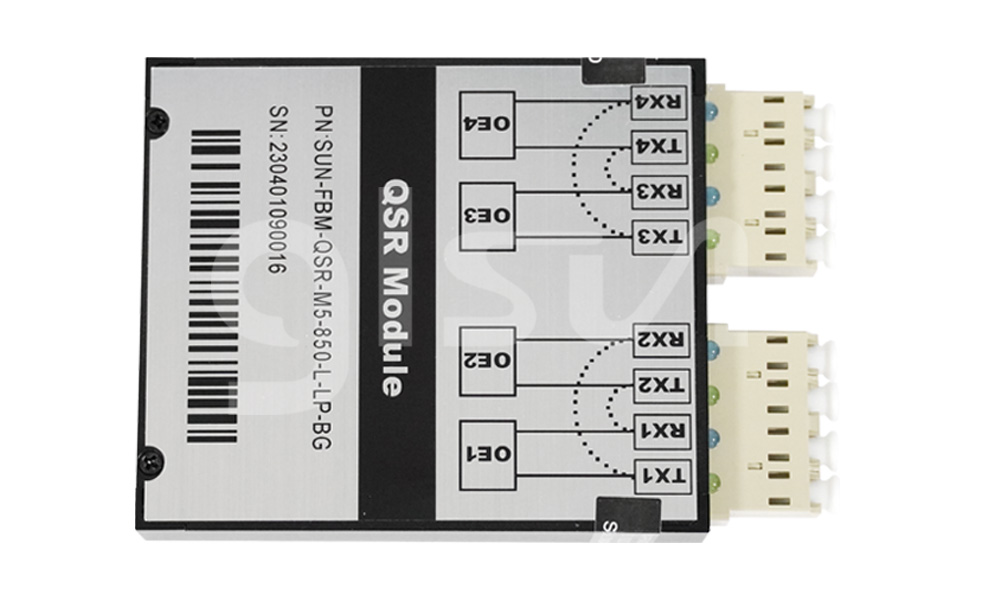

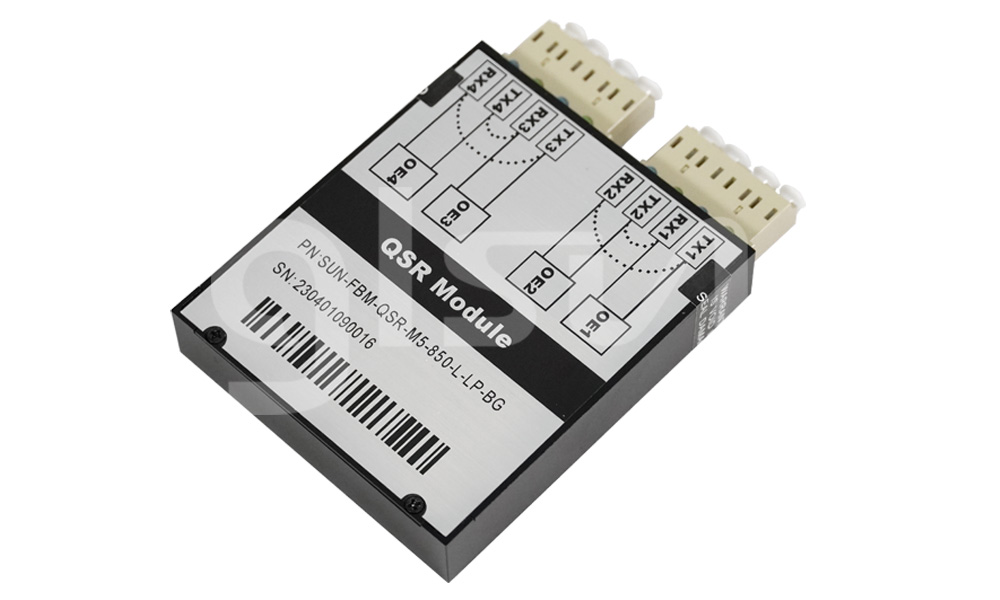

The QSR fiber bypass module is design expressly for Intrusion Prevention System (IPS) provides complete visibility to network traffic, it also introduces a point of failure should the IPS lose power, cable fail or application freeze. The module can support 10.3Gbit/s in full duplex mode per port of data transfer rate and OM-3 Multi-mode fiber operations.

The QSR fiber bypass modules designed to be compliant digital diagnostic monitoring function: Temperature, VCC, TX optical power, TX laser bias current, and RX received optical power.

The post-amplifier of the QSR fiber bypass module also includes a Loss of Signal (LOS) circuit that provides a TTL logic-high output when the received optical level is below a preset LOS Assert threshold.

Features
·Compliant with IEEE 802.3ae 10GBASE-SR
·Link Distances at 10.3Gbps 300m links with 50/125um OM-3 MMF Cable
·Laser Class 1 Product with comply with Requirements of IEC 60825-1 and IEC 60825-2
·EEPROM with Series ID Function
·+5V/+3.3V Power Supply and TTL Logic Interface
·LC Connector interface with optical Bypass Function
·LED indicate operation function

Applications
· In-line traffic Monitoring, Analyzing and Optimization
· Intrusion Prevention System
· Quality of Service
· In-line Security
· Load Balance
· Web Acceleration Appliances
